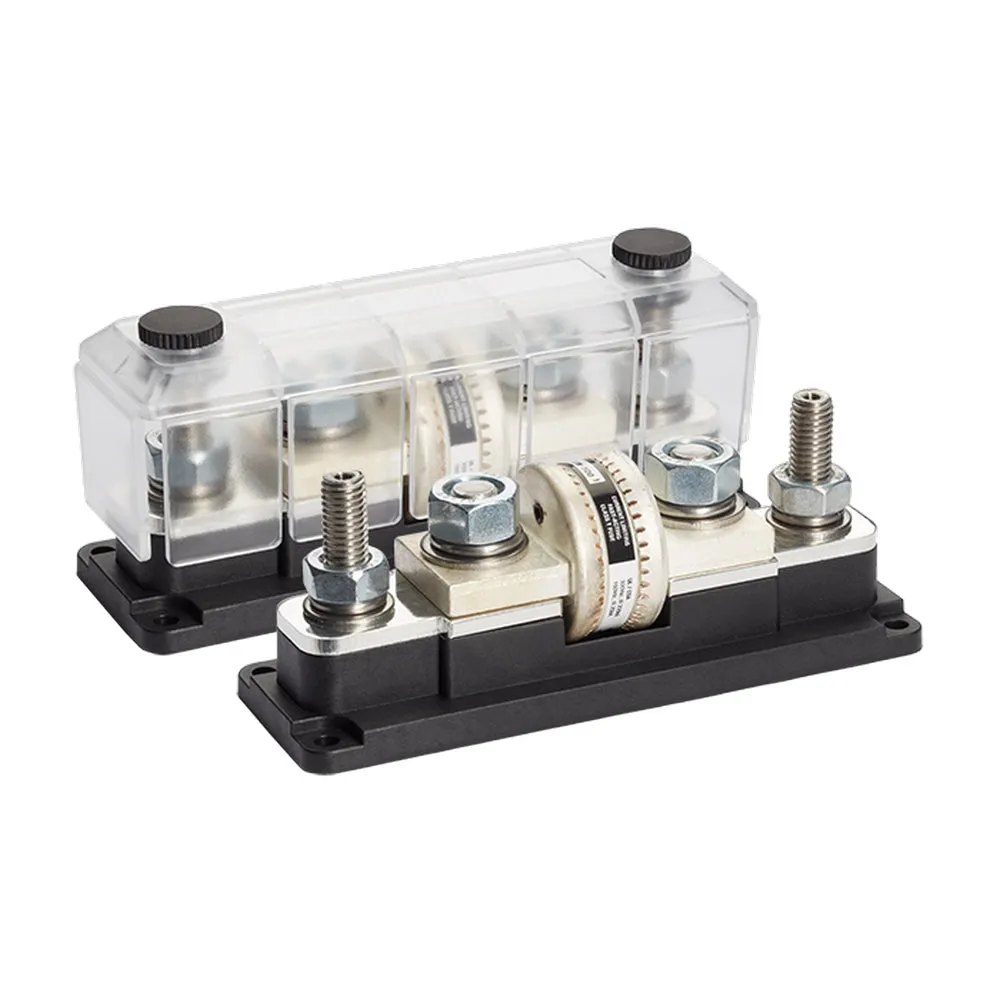

The DC Modular fuse holder for CLASS-T type fuses. The solid and compact design, as well as the possibility to link up multiple fuse holders on a fixed grid, make these products the best choice for all professional DC power systems.

Features:

• Stainless steel studs, nuts and washers for optimal corrosion resistance
• Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
• Special fibre reinforced base material offers excellent high temperature properties,  good chemical resistance and high strength
• Unique grid optimized footprints allow space saving arrangements of multiple products
• Robust transparent covers with breakouts to allow wire access from any direction
• Smart terminal design allows dual mirrored cable lug connections

Product Info:

• Fuse Range: 450-600A
• Max Voltage: 60V DC
• Stud Size: M10
• Dimensions: 150 x 50 x 64.5mm (L x W x H)
